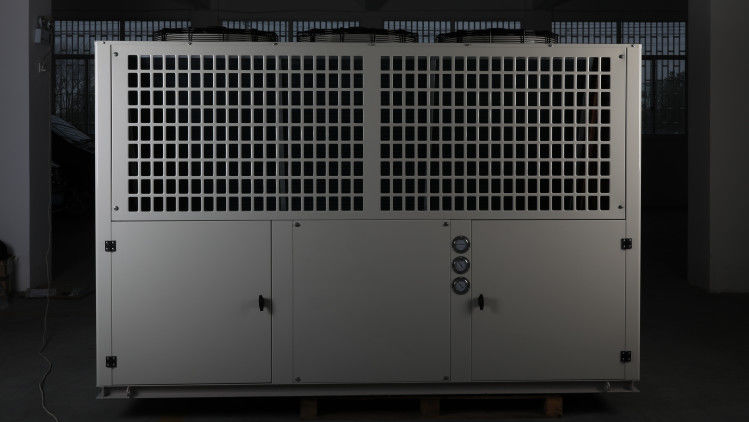

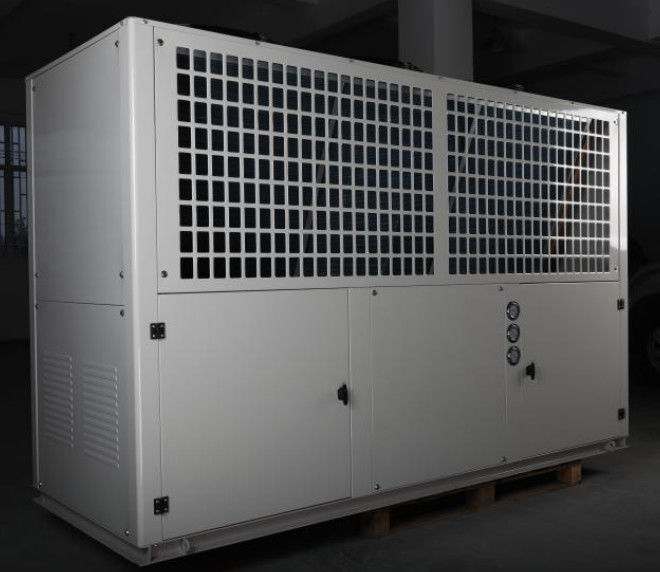

Name: A box type condensing unit suitable for outdoor use and easy to operate, meeting the needs of refrigerants such as R404A, R507A, R448, R22, etc
Brand: ZHEJIANG KAIDI REFRIGERATION EQUIPMENT CO.,LTD
SKU: Театр
Price: 5,000.00 USD
Availability: InStock

Домой > продукты > Блок холодной комнаты конденсируя >

A box type condensing unit suitable for outdoor use and easy to operate, meeting the needs of refrigerants such as R404A, R507A, R448, R22, etc

Место происхождения:

КИТАЙ

Фирменное наименование:

Kaideli

Номер модели:

Театр

Свяжитесь с нами

Запросить расценки

A box type condensing unit suitable for outdoor use and easy to operate, meeting the needs of refrigerants such as R404A, R507A, R448, R22, etc

Детали продукта

Сертификация:

CE, UL, ROHS, ISO9001, CCC

Тип:

Конденсаторный агрегат，Конденсаторный агрегат с воздушным охлаждением

Температура:

Средняя температура и низкая температура: -2 ~ 5 ℃, -15 ~ -35 ℃.

Емкость:

В зависимости от различных заданных температур она варьируется от 5,3 до 25,3 кВт.

Охлаждающая способность:

В зависимости от различных заданных температур она составляет от 10,6 до 59,8 кВт.

Лошадь:

От 8 до 30 л.с.

Хладагент:

Р22, Р404А, Р507А

Напряжение:

380 В/3 Ф/50 Гц или 220 В/1 Ф/50 Гц

Компрессор:

Спиральный компрессор Эмерсон

Приложение:

Холодильная камера, холодильная и химическая промышленность, миниатюрная холодильная камера, камера

OEM -сервис:

да

Служба послепродажи предоставлена:

Обслуживание за рубежом не предоставляется, Доступна поддержка третьих сторон за рубежом, Доступны и

Условия оплаты и доставки

Количество мин заказа

Время доставки

В течение месяца

Условия оплаты

Брызги

Связанные продукты

Свяжитесь с нами

86-0575-83063696

Свяжитесь сейчас

Описание продукта

TE series box-type condensing unit product overview

TE series condensing unit is equipped with Emerson scroll compressor as the main component, which is designed with double-layer and large box structure; this series of products have the following features:
1.The compressor is Emerson medium-temperature ZB series compressor and low-temperature ZFI series compressor with EVI.
2.The unit is designed for medium temperature and low temperature applications, of which the medium-temperature unit is mainly used for the cold store of -2 ~ 5 °C, and the low-temperature unit is mainly used for the cold store of -15 ~ -35 °C.
3.The enclosure is made of galvanized steel plate sprayed with powder coating in silver gray for excellent corrosion resistance, quite suitable for outdoor use; it is designed with double-layer structure, namely upper and lower, which has a large operating space and is convenient to clean the condenser and chassis; the compressor's chassis cover is connected with hinge structure, which is convenient for operation and maintenance.
4.The chassis panel is attached with honeycomb sound-insulation foam to effectively reduce the operating noise and sheet metal resonance of the unit.
5.The fan tube is designed with overall stretching large rounded high air tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
6.The condenser is designed in U-shaped structure, with fewer pipes, large air intake area and high heat exchange efficiency.
7.Fitted with double fans in design, it can effectively reduce the noise of fan, facilitate condensing fan control and improve the operation reliability of the unit;
8.It is compatible with R404A, R507A, R448, R449, R22 and other refrigerants.

Unit Configuration

Medium-temperature and high-temperature uni

Unit model
TE08M	TE09M	TE10M	TE12M	TE13M	TE15M	TE20M	TE22M	TE25M	TE30M
Scroll compressor(welded joint)	●	●	●	●	●	●	●	●	●	●
Oil heating band	●	●	●	●	●	●	●	●	●	●
Exhaust damping pipe	○	○	○	○	○	○	●	●	●	●
Oil separator	○	○	○	○	○	○	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●	●
Reservoir outlet shut-off valve	●	●	●	●	●	●	●	●	●	●
Dry filter	●	●	●	●	●	●	●	●	●	●
Sight glasses	●	●	●	●	●	●	●	●	●	●
Gas-liquid separator	○	○	○	○	○	○	○	○	○	○
High/low-pressure protection	●	●	●	●	●	●	●	●	●	●
High/low-pressure gauge	●	●	●	●	●	●	●	●	●	●
Refrigerant solenoid valve	○	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○	○
Low pressure control (vent shutdown)	○	○	○	○	○	○	○	○	○	○

○

Note:●Standard components,○ Optional component,/Not available

Low-temperature unit

Components	Unit model
Components	TE08LY	TE10LY	TE12LY	TE15LY	TE18LY	TE20LY	TE25LY	TE30LY
Scroll compressor (EVl)	●	●	●	●	●	●	●	●
Oil heating band	●	●	●	●	●	●	●	●
Exhaust damping pipe	○	○	○	○	○	○	●	●
Gas-liquid sepatator	○	○	○	○	○	○	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●
Reservoir outlet shut-off valve	●	●	●	●	●	●	●	●
Dry filter	●	●	●	●	●	●	●	●
Sight glasses	●	●	●	●	●	●	●	●
Gas-liquid separator	○	○	○	○	○	○	○	○
High/low-pressure protection	●	●	●	●	●	●	●	●
High/low-pressure gauge	●	●	●	●	●	●	●	●
(Subcooling) solenoid valve	●	●	●	●	●	●	●	●
(Subcooling) expansion valve	●	●	●	●	●	●	●	●
Subcooling exchange plate	●	●	●	●	●	●	●	●
Refrigerant solenoid valve	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○
Low pressure control (vent shutdown)	○	○	○	○	○	○	○	○

Note:●Standard components,○ Optional component,/Not available

Support and Services

Our Cold Room Condensing Unit product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, maintenance, troubleshooting, and any technical queries you may have. Additionally, we offer training programs and resources to help you maximize the efficiency and longevity of your unit. Rest assured that with our dedicated technical support, you can confidently rely on the performance and durability of our Cold Room Condensing Unit.
