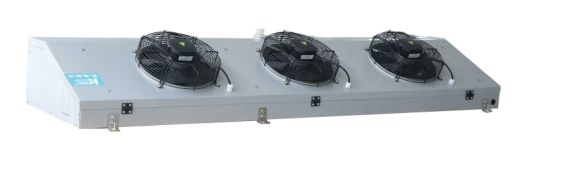

EA series commercial angle-type air cooler product overview
EA series commercial angle-type air cooler is designed with compact structure, blowing fan, of which the fans are installed on the beveled surface;it is compact to make better use of the space in cold storage,which is mainly used for those small-sized cold storage with small storage spaces.
This series of products has the following characteristics:
1.Casing: Made of aluminum magnesium plate sprayed with powder coating (silver gray RAL9006),lightweight;
2.The side sheet of the heat exchanger is made of aluminum plate, which can effectively protect the copper tube and reduce the weight;
3.Double water plate design: The outer water plate is designed with hinge structure,which is convenient for operation; the inner water plate is designed with sink structure made of aluminum plate,and the condensed water or defrost water is directly discharged into the drainage outlet of the outer water tray through the inner water tray;
4.Coil: φ12mm inner-grooved copper tubes are used,arranged in a triangular pattern, with high heat exchange efficiency;
5.Corrugated aluminum sheet made of hydrophilic aluminum foil,with the sheet spacing of 4.0mm and 6.0mm to meet the requirements of different cold storage;
6.Fan: External rotor fan with blowing air, operating temperature: -30~60 °C, fan specification: Φ300,and quantity of fans: 1-4 units;
7.Defrosting: The electric defrosting is adopted in the standard manner,and the stainless steel heating tubes are distributed in the coil fins and the inner water tray, which can bring about desirable defrosting effect;
8.The IP65 waterproof junction box and waterproof connectors are used,with better waterproofing: the fan and the heating pipe are wired separately,which can lead to high reliability;
9.The outlet of the air cooler is equipped with a needle valve,which is convenient for users to test the pressure;
10.It is subjected to strict factory pressure test at the pressure of 23bar;
11.The expansion valves and other parts can be pre-installed according to customer’s needs;
12.It is compatible with R404A, R507A, R448A, R449A, R134a, R22 and other refrigerants.
Standard Configuration and Options
| component | Configutation | component | Configutation | ||
| Casing | Powder coated aluminum-magnesium plate | ● | Aluminum foil | Normal aluminium foil | ○ |
| Powder coated steel plate | ○ | Hydrophilic aluminum foil (blue foil) | ● | ||
| Powder coated galvanized sheet | ○ | Defrost | Air defrost | ○ | |
| Stainless steel plate | ○ | Electric heating pipe | ● | ||
| Motor | Weiguang external rotor motor | ● | Hot gas defrost (coil & tray) | ○ | |
| EBM external rotor motor | ○ | Expansion valve | ○ | ||
| Air tube fan | × | Drain heater | ○ | ||
●:Standard component;○:Optional component;×:Not available
Electrical Parameters
| Model | Fan motor | Defrosting with electric heating | |||||
| Voltage(V) | Power(W) | Current(A) | Rotation speed(r/min) | Coil(KW) | Water plate(KW) | Total power(KW) | |
| EA301* | 220-1 | 85 | 0.42 | 1380 | 1×0.6 | 1×0.6 | 1.2 |
| EA302* | 220-1 | 170 | 0.84 | 1380 | 1×1.1 | 1×1.1 | 2.2 |
| EA303* | 220-1 | 255 | 1.26 | 1380 | 1×1.6 | 1×1.6 | 3.2 |
| EA304* | 220-1 | 340 | 1.68 | 1380 | 1×2.0 | 1×2.0 | 4 |
